Pre-Dimensioning of Bevel Gears According to ISO 23509
This tutorial demonstrates pre-dimensioning of the geometry of a bevel gear stage according to ISO 23509. After pre-dimensioning, the bevel gear stage includes all information required for standard calculations and advanced local gear calculations. After the calculation is completed, the machine settings (Standard.KGD) can be exported.
Create a new model
(Project → New)Add a bevel gear stage

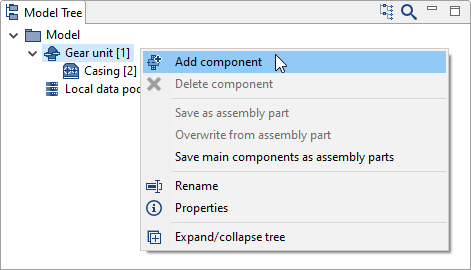

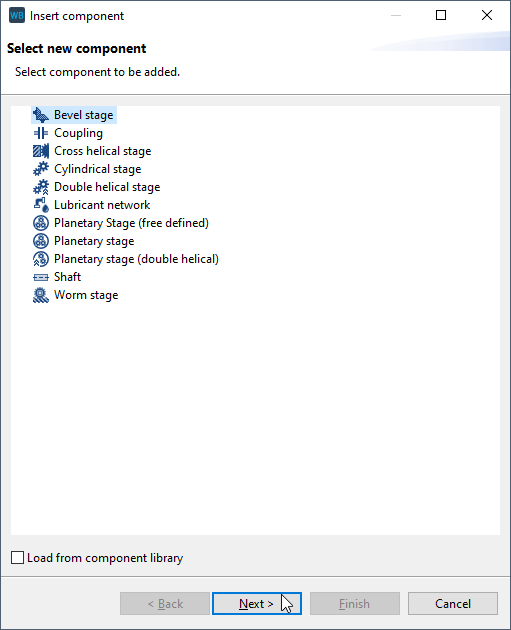

Right-click the gear unit in the Model Tree and add a new bevel gear stage component.
Specify the gear data

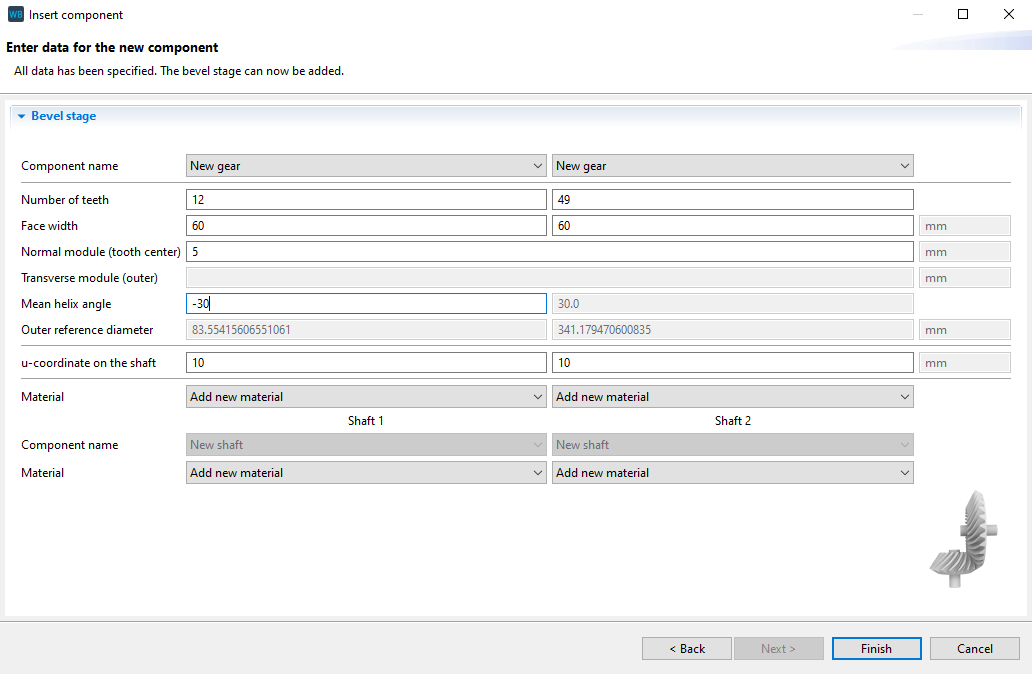

Enter the gear data in the assistant as shown in the image below.
Basic geometry information

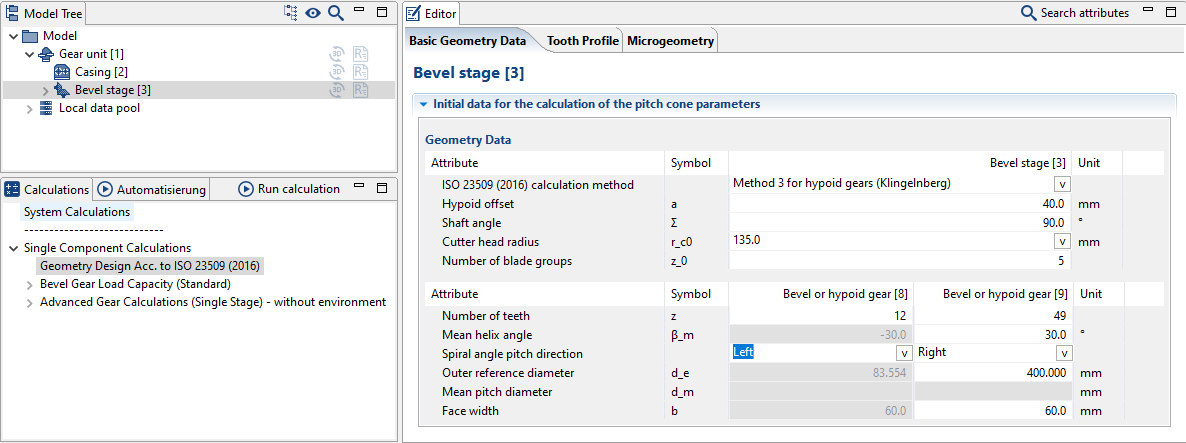

Select "Bevel stage [3]" in the Model Tree and go to Calculations -> Single component calculations -> Geometry design acc. to ISO 23509 (2016). There are 3 separate tabs in the Editor for entering data. Enter the parameters as shown below, starting with the "Basic geometry data" tab.
Tip
For more information on the different design methods, see the Attribute Help
for the "ISO 23509 (2016) calculation method" attribute on the "Basic geometry data" tab.The cutter head radius rC0 can be specified manually, or a standard cutter head can be selected. A more detailed description is available in the Attribute Help.
Tooth profile specifications

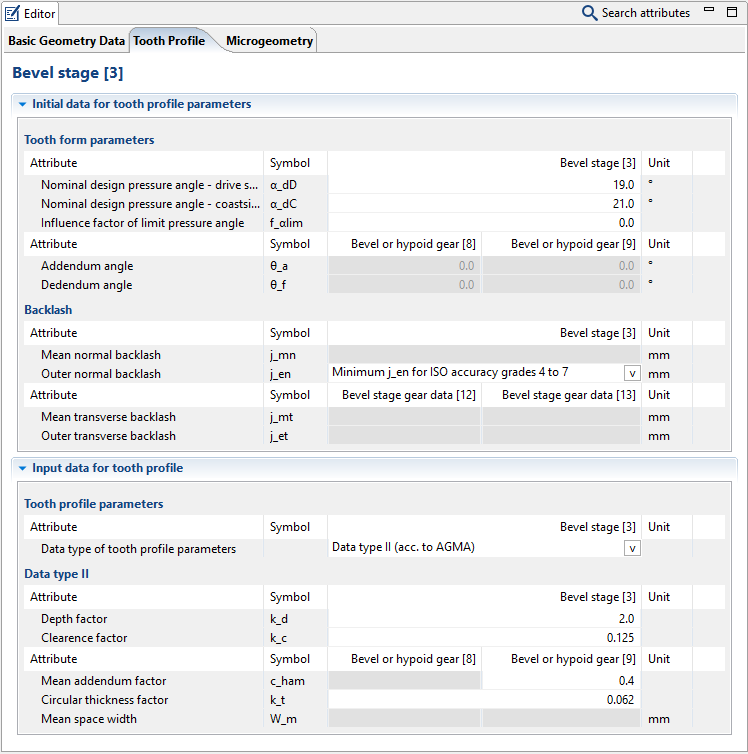

Switch to the "Tooth profile" tab in the Editor and enter the parameters as shown below.
Microgeometry specifications

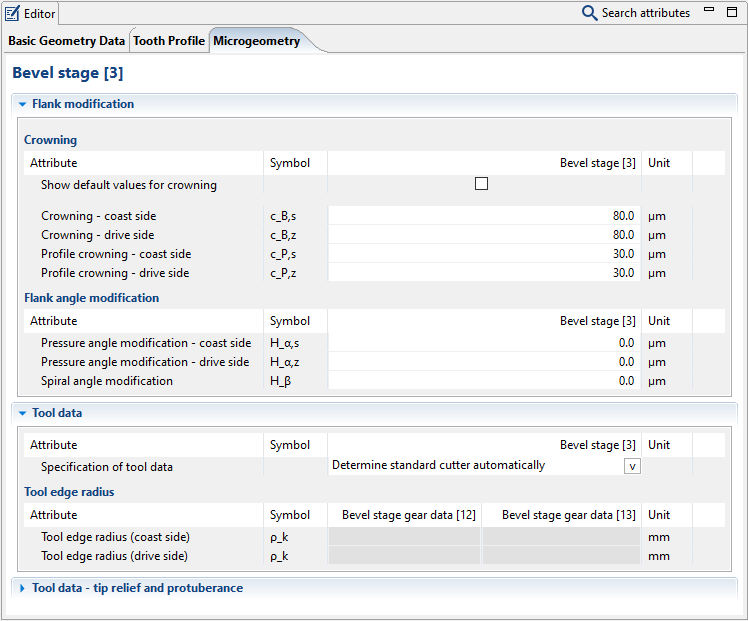

Switch to the "Microgeometry" tab in the Editor and enter the parameters as shown below. Here, you can activate "show default values for crowning" and then select the heat treatment and operating conditions. The corresponding default values for the profile crowning and, once the cutter module has been specified, depth crowning are shown as interval or standard values for orientation.
Start the calculation

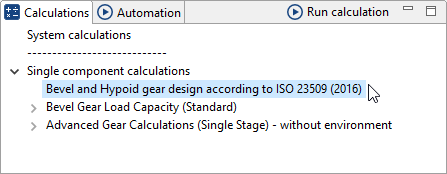

To start the pre-dimensioning calculation, select "Bevel stage [3]" in the Model Tree and double-click "Geometry design acc. to ISO 23509 (2016)" in the Calculations window.
Results

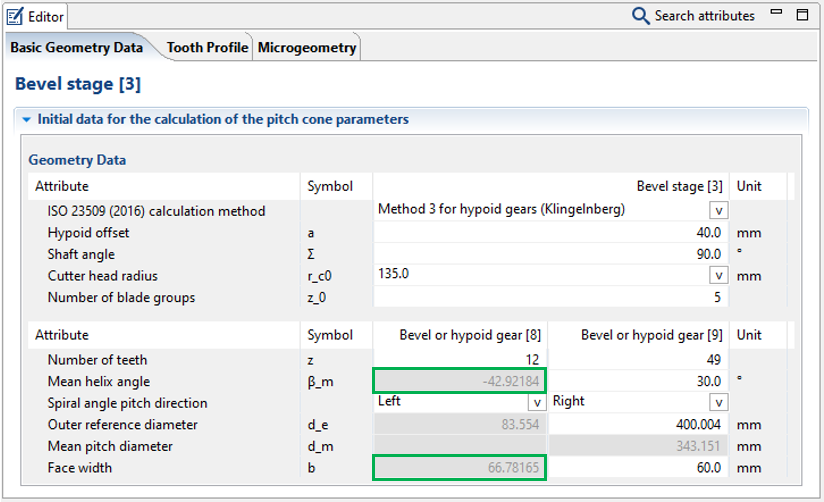

Under the "Basic geometry data" tab in the Editor, you can see that the values for "Mean helix angle" and "Face width" have been calculated.
Notice
To export the machine settings data, right-click on the bevel gear stage and choose "Export Standard.KGD."

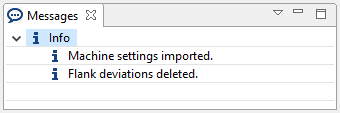

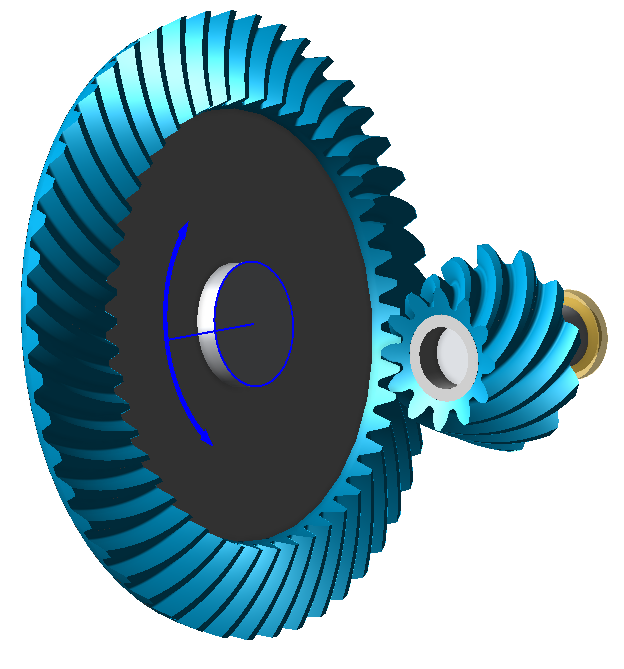

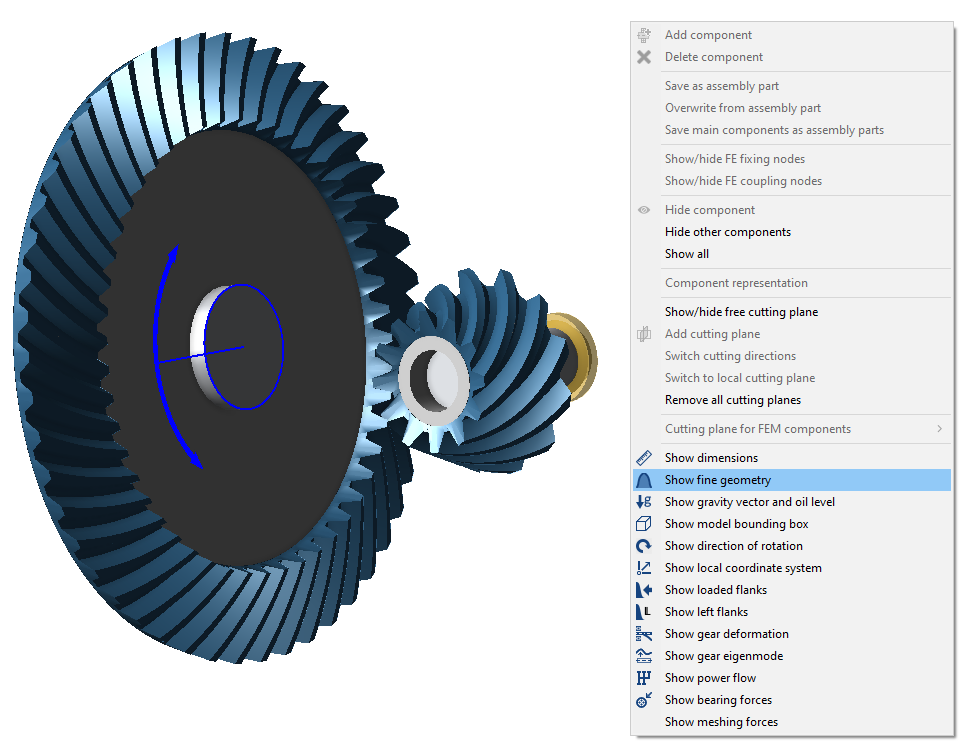

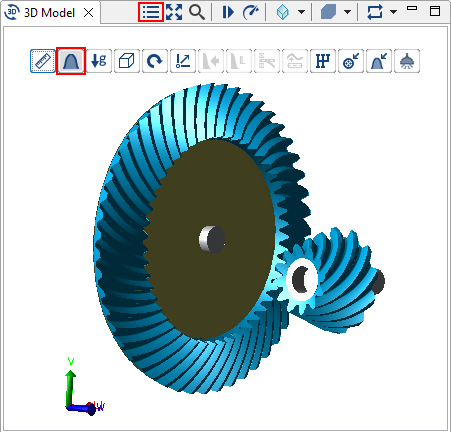

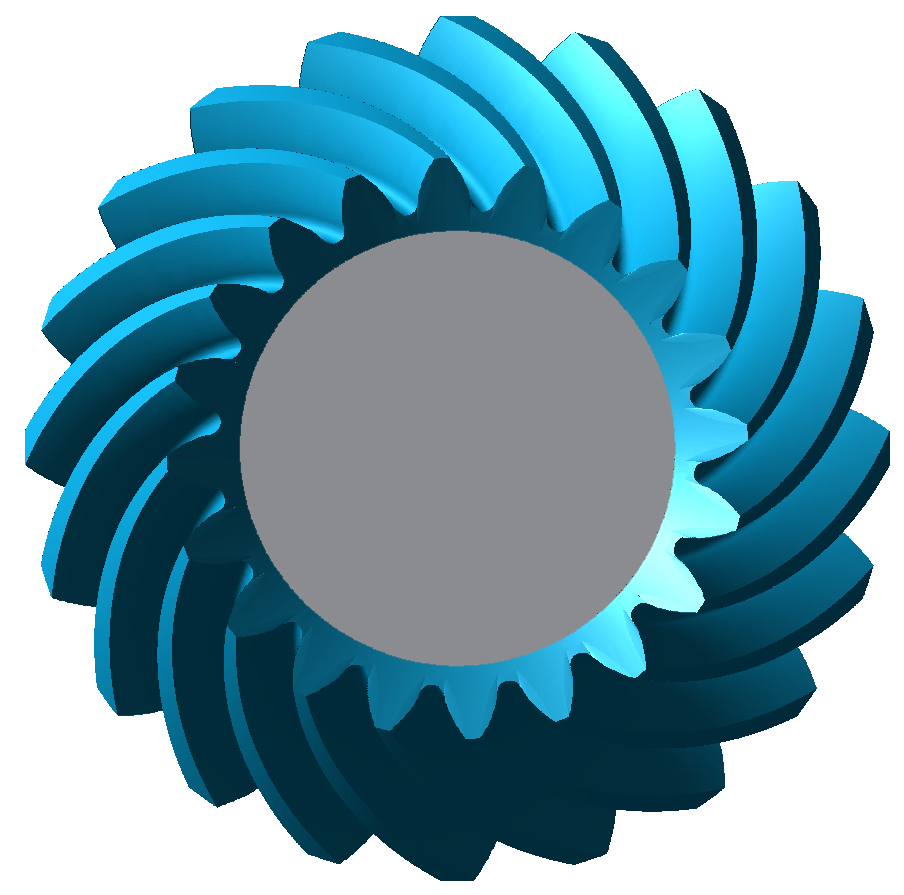

The calculated geometry can now be displayed in the 3D Model view
. Enable the 3D Toolbar in the 3D Model view and click the “Fine geometry” button.
