Reporting
The FVA-Workbench creates a model snapshot when a calculation is completed. Model snapshots contain all specifications and calculation results at the time of the calculation. Reporting clearly illustrates the data included in a model snapshot.
The contents of a report can be configured using report templates. Report templates consist of multiple sections, each describing a machine element. These sections can include charts, tables, and figures.
The report template is applied to a model snapshot when a report is generated. The finished report only includes the outputs defined in the template.
Notice
Outputs that are defined in a report template but not calculated in the model snapshot are not shown in the report.

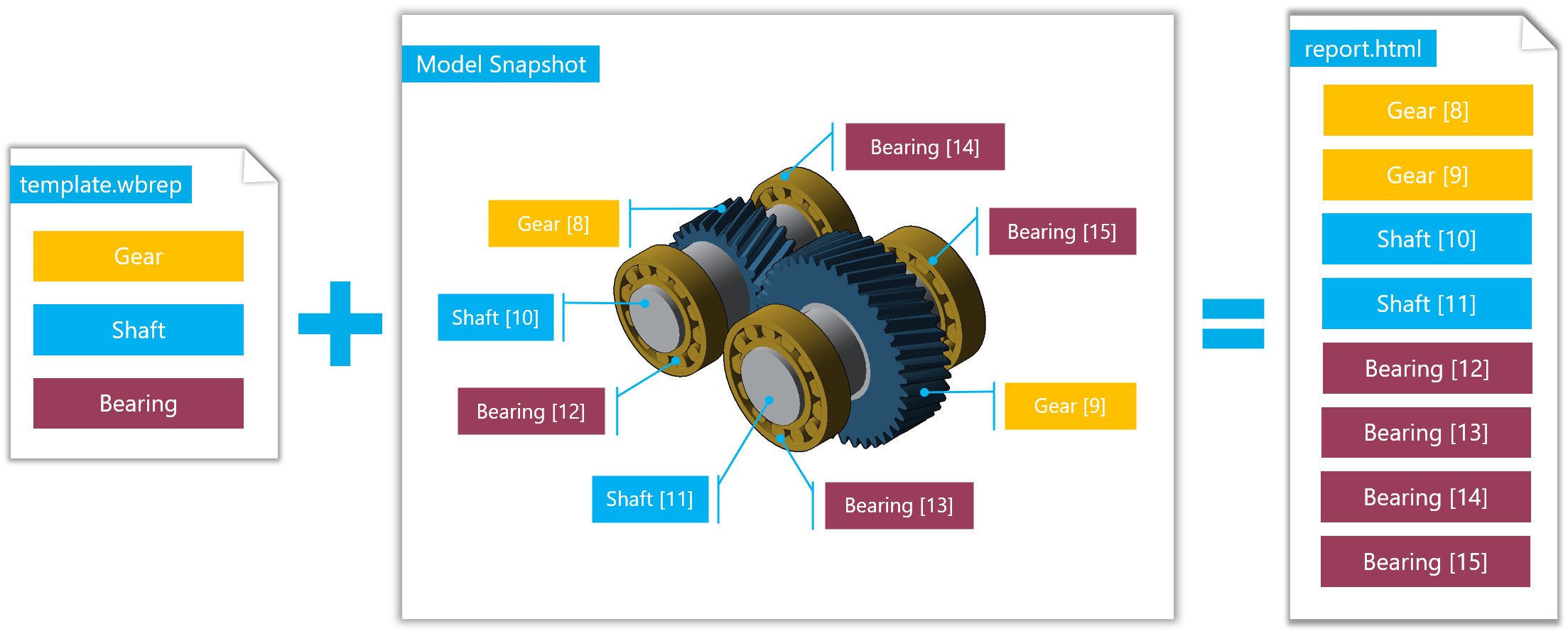

Outputs for machine elements are defined in a report template. The finished report then includes a section for each machine element consisting of the outputs configured in the report template.

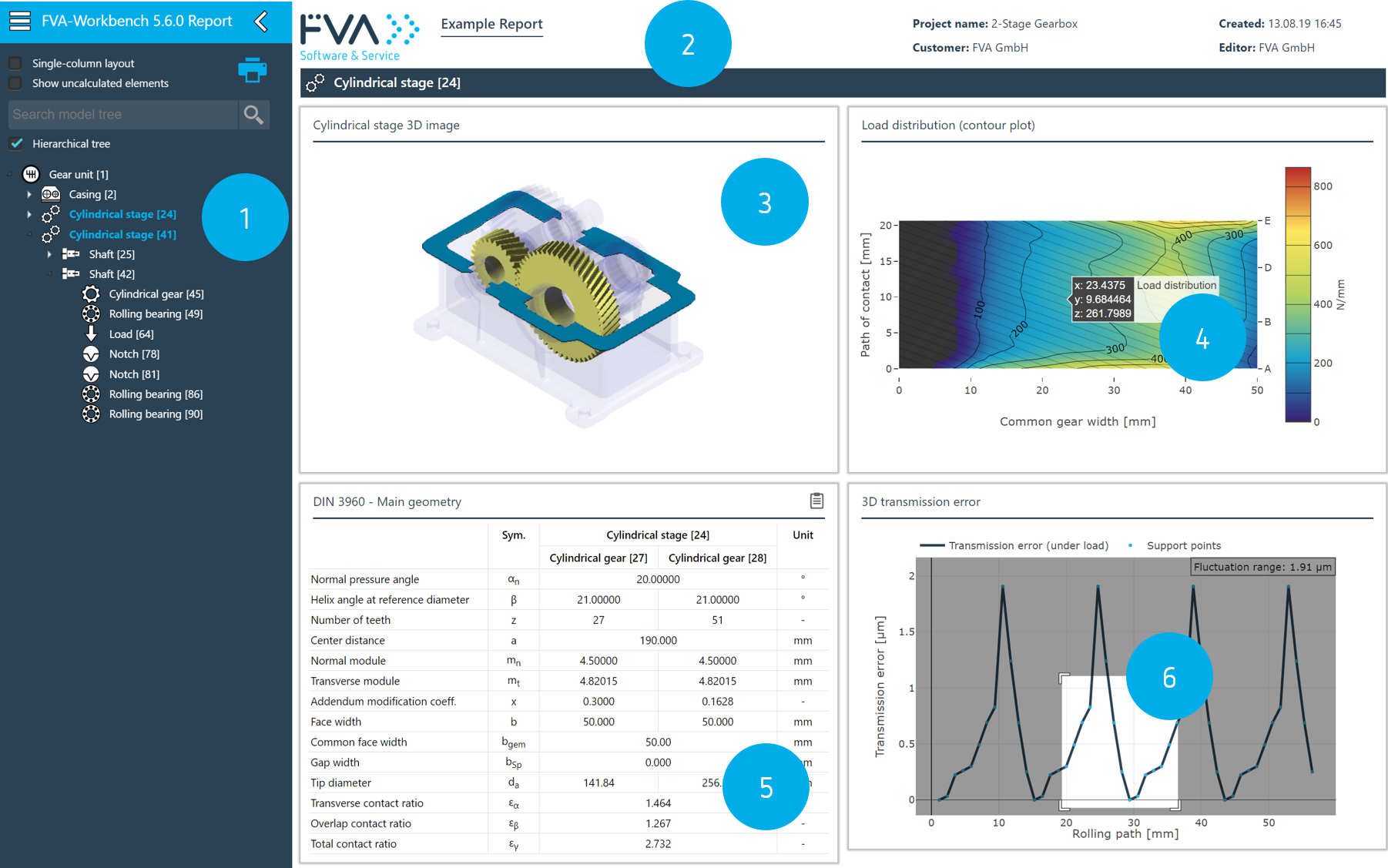

(1) The Model Tree represents the hierarchical structure of the gear unit. Clicking on a component scrolls to the section of the report that includes the output for the machine element.
(2) The header includes information such as the title, report template, customer, etc.
(3) A 3D image can be generated for each machine element.
(4) In many charts, values are shown when hovering over a position.
(5) The result-attributes that are shown in the tables can be edited in the report configurator.
(6) Charts can be zoomed as required for detailed evaluation.
Web seminar - Results reporting in the FVA-Workbench
